Serving the Quantitative Finance Community


User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

November 29th, 2023, 12:18 am

1.continued.
I think the goal should be to restructure the article in some way (I would say 40% text, 60% maths). I use data flow from input to outputs, DFDs, block diagrams and base your article around it (e.g. my MC article or Chun's ML Rough Heston model). And becomes much easier to code up in C++. And all stakeholders should be singing from the same hymn sheet..

A list: market and model data, algorithms, output, etc. each a separate module. See Figure 1 in MC Application. Divide et impera.

Then my part 2 (next) becomes easier.  Can pluck the subsystems from the original text.

https://www.datasim.nl/blogs/29/msc-the ... nance-2020
https://onlinelibrary.wiley.com/doi/epd ... wilm.10647
Attachments
MC Application (5).pdf
(953.93 KiB) Downloaded 132 times

marcoairoldi
Topic Author
Posts: 9
Joined: November 23rd, 2023, 11:13 am

Re: Multiverse Pricing Models

November 29th, 2023, 3:15 pm

Thank you very much, Daniel. I appreciate your insights, and I believe they are particularly suitable for my paper. Indeed the presented methodology involves several steps: 1) defining the forward transition matrix; 2) ensuring that the forward transition matrix satisfies a set of constraints (in C++, we could define the abstract concept of linear requirements for transition matrix and then derive concrete classes); next, applying the simplex method to the overall conditions, resulting in two forward transition matrices solutions: one that minimizes the target (e.g. an exotic payoff) and one that maximizes it. For each solution, we can calculate all the numbers for all contracts (plain vanilla contracts, of course, remain the same) beyond just the target. All of this should be presented as a block diagram with a clear workflow. In this way, it should be easier to explain each block mathematically. And following this structure, the paper writing will follow a clear path arriving to the final point: getting narrow bounds for exotics respect to the set of all well formed pricing models. Discard all not in line considerations that do not have a representation in the block diagram . Have I understood your point correctly?

Dispate the not very good writing and paper structuring, may I ask your overall impression?

Thanks for giving me the opportunity to interact with you
Marco

User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

November 29th, 2023, 4:37 pm

Thank you very much, Daniel. I appreciate your insights, and I believe they are particularly suitable for my paper. Indeed the presented methodology involves several steps: 1) defining the forward transition matrix; 2) ensuring that the forward transition matrix satisfies a set of constraints (in C++, we could define the abstract concept of linear requirements for transition matrix and then derive concrete classes); next, applying the simplex method to the overall conditions, resulting in two forward transition matrices solutions: one that minimizes the target (e.g. an exotic payoff) and one that maximizes it. For each solution, we can calculate all the numbers for all contracts (plain vanilla contracts, of course, remain the same) beyond just the target. All of this should be presented as a block diagram with a clear workflow. In this way, it should be easier to explain each block mathematically. And following this structure, the paper writing will follow a clear path arriving to the final point: getting narrow bounds for exotics respect to the set of all well formed pricing models. Discard all not in line considerations that do not have a representation in the block diagram . Have I understood your point correctly?

Dispate the not very good writing and paper structuring, may I ask your overall impression?

Thanks for giving me the opportunity to interact with you
Marco
Prego Marco,
This was my thinking as well. I'll go through your paper again in the light of your points 1), 2) above. I do have some (numerical) questions will pose in a couple days.

// I used Bezier stuff when in CAD (I once designed a Pirelli tire with Bezier) and for holography, but the NURBS variant. What's the compelling reason 1) nice pictures, 2) interpolation, 3) linear constraints? You described them but no formulae..


User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

November 29th, 2023, 5:01 pm

A 101 example could be to take the simplest (not too simple) and trace/paraphrase  the steps from Input to Output "meeting" Simplex, Transition along the way i.e. data flow diagram, like Figure 2 in Chun's thesis.

 block diagram with a clear workflow. In this way, it should be easier to explain each block mathematically.
yep  :D

https://onlinelibrary.wiley.com/doi/epd ... wilm.10647

User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

November 29th, 2023, 5:31 pm

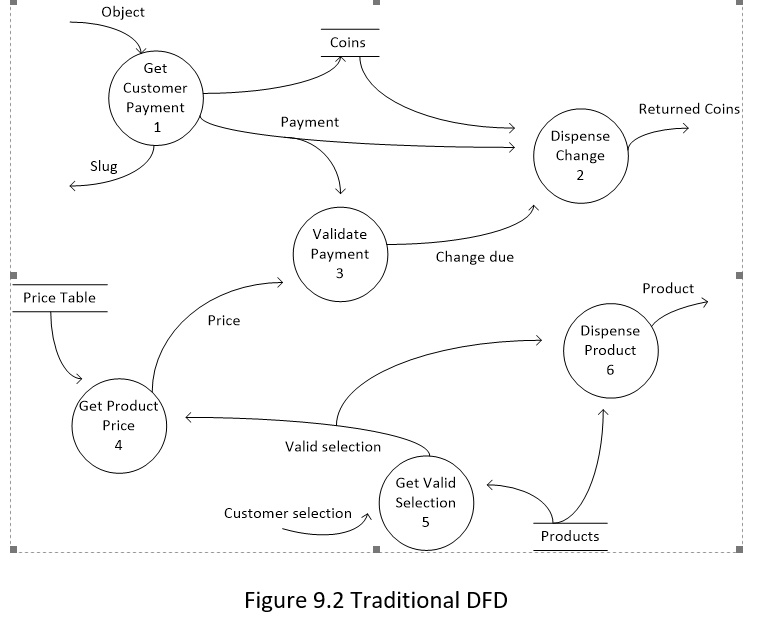

A DFD, go with the flow





Attachments

User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

December 10th, 2023, 8:24 pm

Re "can always be integrated out".

It's not clear to me what is being asserted.

It's true that, in Hidden Markov Models, for example, there is indeed a lot of integrating out. I have a whole chapter on "Stochastic Volatility as a Hidden Markov Model" in my "Option Valuation under Stochastic Volatility II" book.

Separately, Dupire/Gyongy theory does a lot of integrating out of univariate or multivariate stochastic volatility in the construction of a local volatility surface for diffusions.

However, there remains the problem of "re-calibration".

In any event, if you can make/prove a careful statement about the application of your theory to data generating processes with additional state variables (hidden or not), my suggestion is to include that in your paper.
I would like to this problem a bit of a whack in C++. Ideally, C++20 and possibly Boost C++ libraries.
Is there a defined process (input-processing-output)?

Some hints:
  1. First, you have to understand the problem. (can you pose it as a block diagram as well?)
  2. After understanding, make a plan.(algorithm) ==> Data Flow Diagram DFD is super
  3. Carry out the plan. C++
  4. Look back on your work. How could it be better?
I need someone to do 1 (and maybe some of 2).

User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

December 10th, 2023, 8:31 pm

Is this article by Prof Madan relevant to Marco's article?
Attachments
16RenMadanQian.pdf
(311.39 KiB) Downloaded 102 times

User avatar
Cuchulainn
Posts: 22924
Joined: July 16th, 2004, 7:38 am

Re: Multiverse Pricing Models

December 10th, 2023, 8:38 pm

Alan's chapter 5 has

Step I: Standsardised SDE
Step II: Discretize the SDE (Euler (x) and NR lattice (y), others?)
Step III: HMM structures (construct [$]Q_n(x)[$] matrix)
?? Step IV: what's next? is that section 5.5's use cases?

Fundamental data input?
Final output?

User avatar
Gamal
Posts: 1533
Joined: February 26th, 2004, 8:41 am

Re: Multiverse Pricing Models

December 10th, 2023, 9:24 pm

Is this article by Prof Madan relevant to Marco's article?
Rather not. Although it is a classic.

marcoairoldi
Topic Author
Posts: 9
Joined: November 23rd, 2023, 11:13 am

Re: Multiverse Pricing Models

December 11th, 2023, 9:58 am

But what one should check is this chain:
  1. Take two future dates and calculate, for that specific model (be it a stochastic volatility model, a stochastic local volatility model, or a jump-diffusion process), the joint probabilities of being at S1 at time T1 and S2 at time T2. This calculation must be done independently from the value of any other auxiliary variables, such as the number of jumps or stochastic volatility. It should be just the joint probability for the underlying.
  2. These joint probabilities, forming a matrix of numbers, essentially represent the transition matrix over two dates, and one should verifies that satisfy the chosen axioms or rules to declare a model a good one.
  3. If this is confirmed, the model is included in the set of treated models because a transition matrix for that model has been calculated (e.g., via Monte Carlo), and this matrix satisfies the rules/axioms of a good model. At that point, the simplex method ensures that using this model to calculate the price of a derivative will fall within the MIN/MAX band. I have conducted this verification, for example, in the case of a jump-diffusion model, where an additional variable is the number of jumps. Nevertheless, I agree that it is a point to carefully explore in a concrete example, as Alan suggests.
